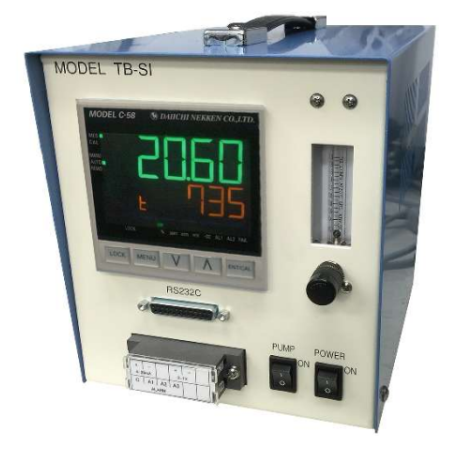

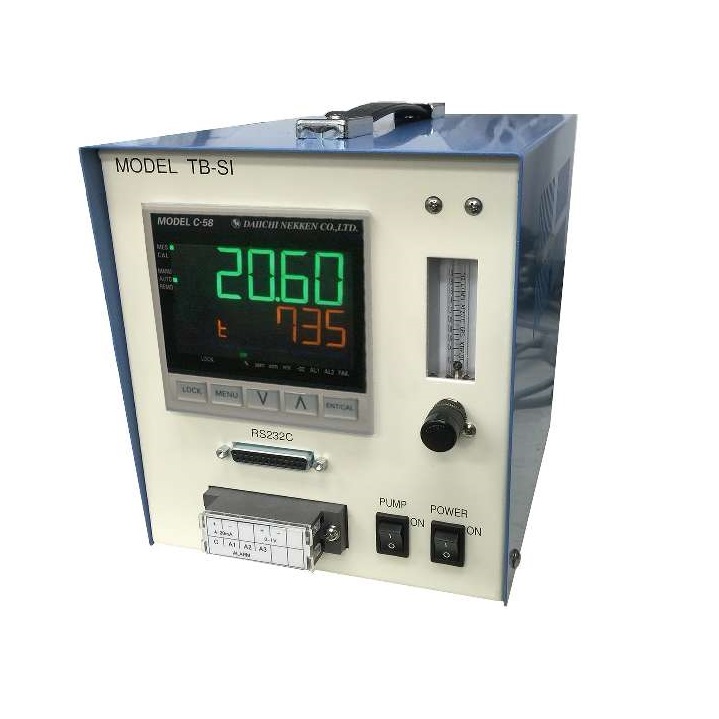

Portable oxygen analyzer TB-SI(DCP) series

Portable oxygen analyzer TB-SI(DCP) series
Model: TB-SI(DCP)
Maker: DAIICHI NEKKEN – JAPAN
Principle: Zirconia electrolyte
Measuring range: 1ppm~100%O2
Display Segment type: LCD, Upper 5 digits・Lower 5 digits・Status lamp 14pcs
Piping: Rc1/4
Flowrate: 0.2~2L/min.
Sample temp: 60°C MAX.
Warm-up: About 20 min.
Power: 100~240VAC
Output: 4~20mADC (Isolated)
0~1VDC, 0~5VDC, 0~10VDC (Isolated, select one of them)
RS-485(Optional), MODBUS(Optional)
Drift: Large one either of less than ±1%FS or±1ppm
Linearity: Large one either of less than ±1%FS or±1ppm
Repeatability: 90% reading 10sec. (Swinging to a high density side)
Response: Less than ±2%FS/week
Accessory: 3 meters of Power supply code
Application: Portable application, Semiconductor application, Reflow furnace, Exhaust gas, etc.

See here for details: Brochure TB-SI(DCP) series rev.1.0
