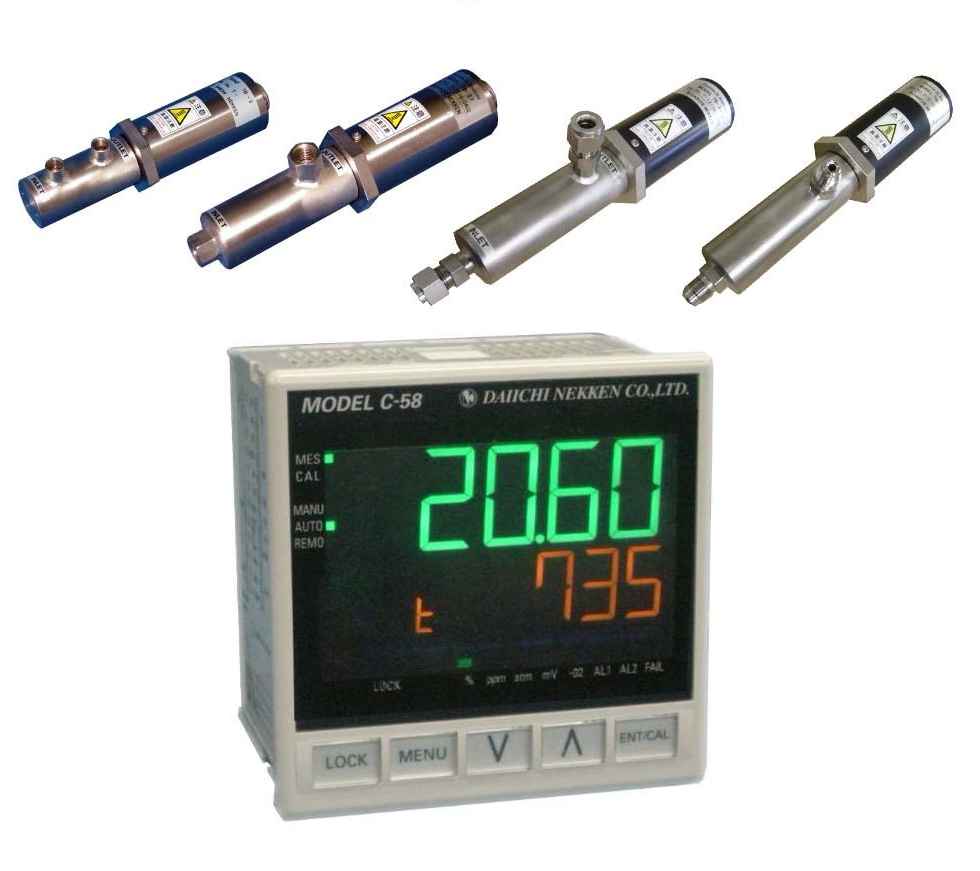

Zirconia Sensing Oxygen Sensor TB-IIF series + Control unit C-58

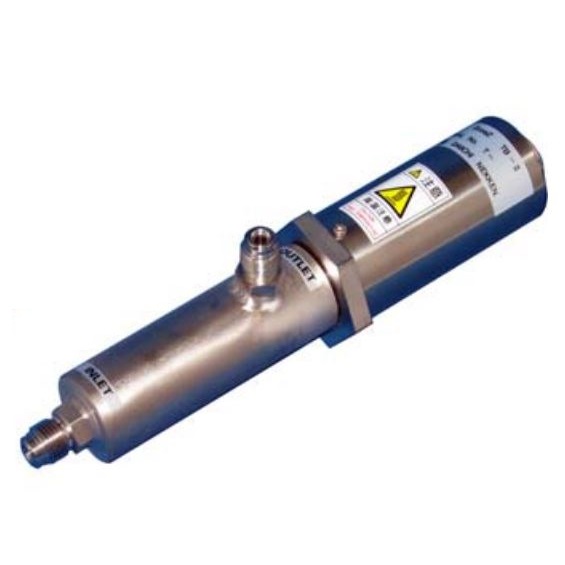

Zirconia Sensing Oxygen Sensor TB- IIF series
Model: TB-IIF
Type: Zirconia
Inlet & Outlet: Rc1/8 or Rc1/4 or O.D.3/8“ Swagelok connector or 4VCR body
Drift: Less than ±2%FS/Week
Sample gas temp.: 300℃ MAX.
Sampling: Injection or absorption by pump, or aspirator
Flow rate: 0.2～2L/min or 0.5～5L/min.
Linearity: The larger either of less than ±1%FS or ±1ppm
Repeatability: The larger either of less than ±1%FS or ±1ppm
Response: 90% reading 10sec. （Swinging to high concentration side）
Application: measuring industrial gas mainly, Inert gas line for semiconductor, Nitrogen re-flow furnace, Nitrogen PSA, Atmosphere furnace, I.G.S., I.G.G. for tanker, Steam, etc.

See here for details: TB-IIF_1

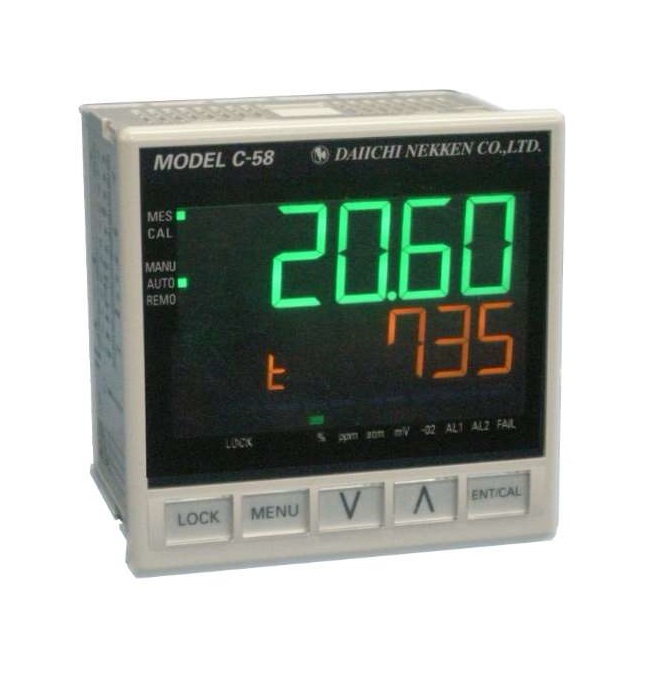

Control unit C-58
Model: C-58-1(1 range), C-58-2(2 ranges), C-58-3(3 ranges)
Range: 1～3（Possible to set freely in the display range）
Display: Segment type LCD
Upper 5 digits・Lower 5 digits・Status lamp 14pcs
Display ranges: 0.00～100.00 or 0.0～100.0（0.00～200.00 or 0.0-200.0) (%)
0.0～9999.9 or 0.00～999.99（0.0～9999.9) (ppm)
-35.00～0.00（-37.00～0.30）(atm)
-100.0～1500.0（-150.0～1550.0）(mV)
-20.00～100.00（-30.00～200.00）(-O2%)
Power: 100～240VAC 50/60Hz
Output: DCA : D.C.4～20mA
DCV : D.C.0～1V, 0～5V, 0～10V (Choose one either)
Communication: RS-485, MODBUS/RTU
Range select: Manual／Auto／Remote

See here for details: C-58_1
