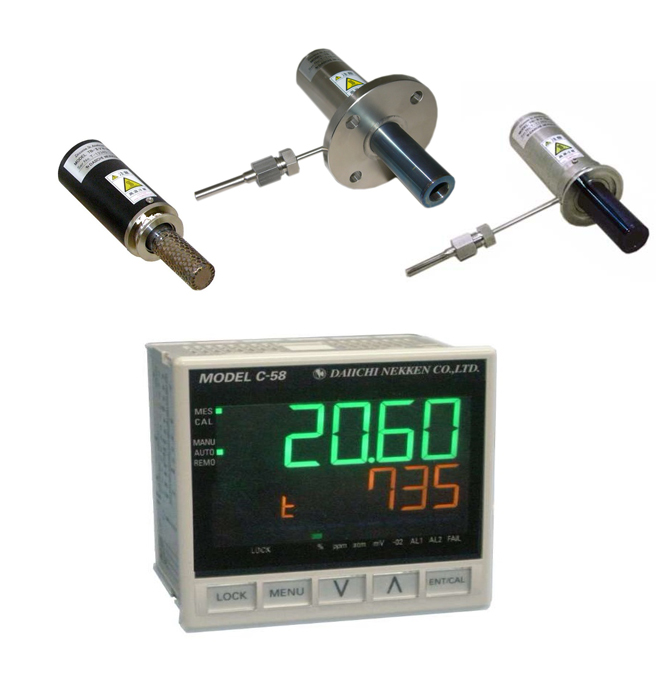

Zirconia sensing oxygen sensor TB-IIV/TB-IIVN series + Control unit C-58

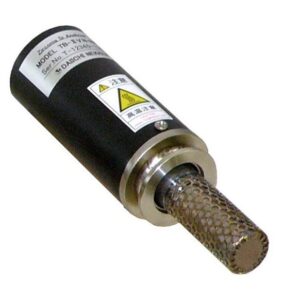

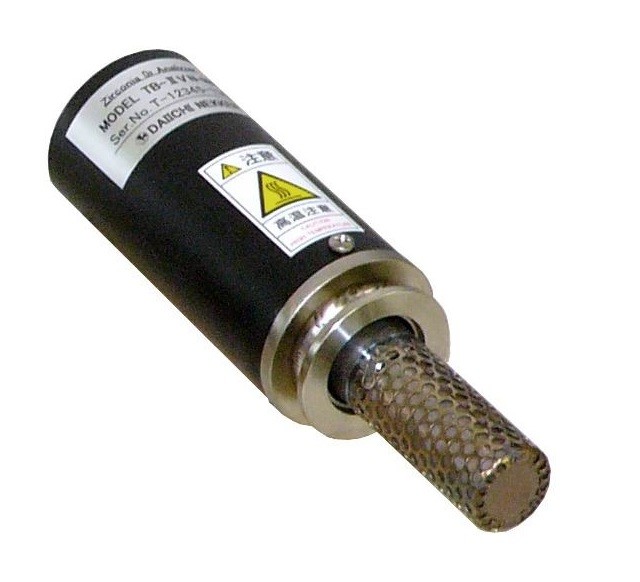

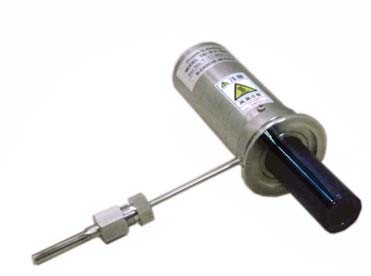

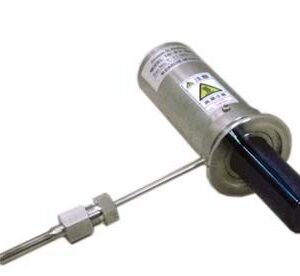

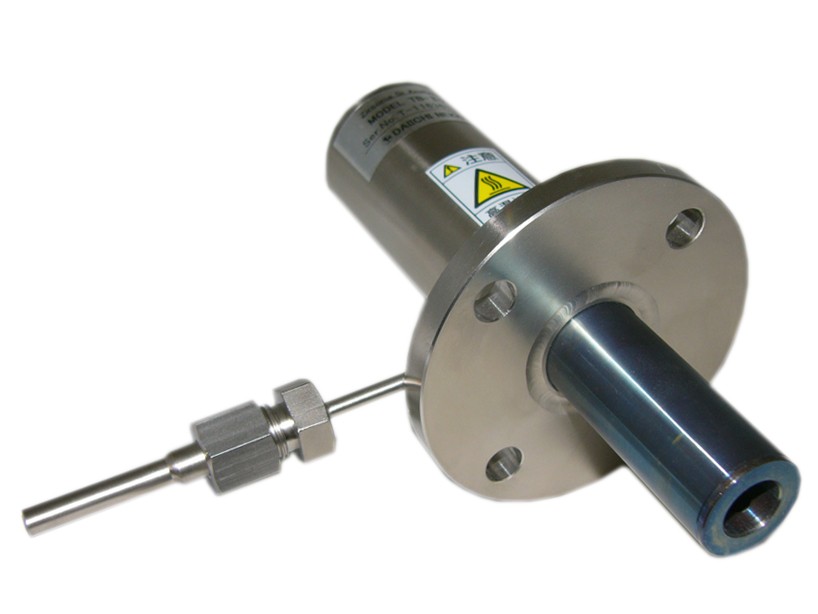

Zirconia sensing oxygen sensor TB-IIV/TB-IIVN series
Model: TB-IIV or TB-IIVN
Maker: DAIICHI NEKKEN – JAPAN
Inlet & Outlet: VF25/ NW40/ ICF70 / NW25 Flange
Drift: Less than ±2%FS/Week
Sampling: Diffusion
Sample gas temp.: 300℃ MAX.
Linearity: Large one either of less than ±1％FS or±1ppm
Repeatability: The larger either of less than ±1%FS or ±1ppm
Response: 90% reading 10sec. （Swinging to high concentration side）
Application: Vacuum furnace, Vacuum glove box, Vacuum chamber, Exhaust gas duct, etc.

See here for details: TB-IIV + TB-IIVN_1

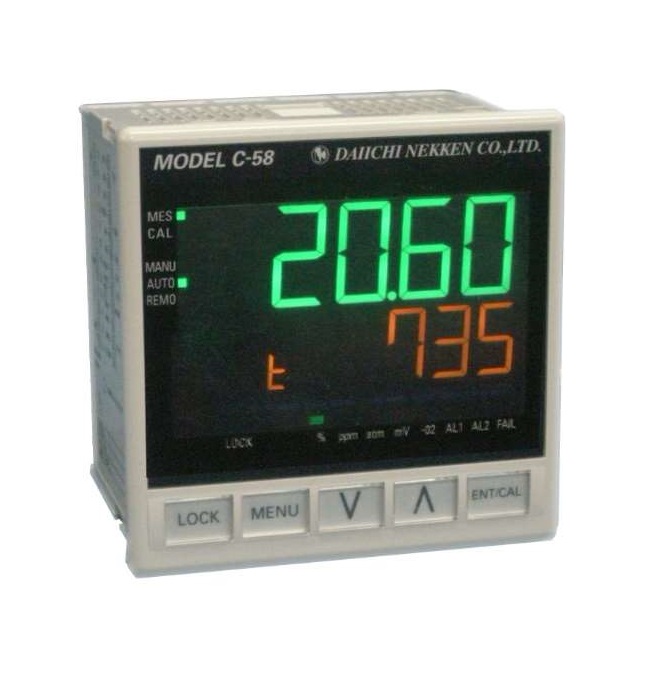

Control unit C-58
Model: C-58-1(1 range), C-58-2(2 ranges), C-58-3(3 ranges)
Maker: DAIICHI NEKKEN – JAPAN
Range: 1～3（Possible to set freely in the display range）
Display: Segment type LCD
Upper 5 digits・Lower 5 digits・Status lamp 14pcs
Display ranges: 0.00～100.00 or 0.0～100.0（0.00～200.00 or 0.0-200.0) (%)
0.0～9999.9 or 0.00～999.99（0.0～9999.9) (ppm)
-35.00～0.00（-37.00～0.30）(atm)
-100.0～1500.0（-150.0～1550.0）(mV)
-20.00～100.00（-30.00～200.00）(-O2%)
Power: 100～240VAC 50/60Hz
Output: DCA : D.C.4～20mA
DCV : D.C.0～1V, 0～5V, 0～10V (Choose one either)
Communication: RS-485, MODBUS/RTU
Range select: Manual／Auto／Remote

See here for details: C-58_1
